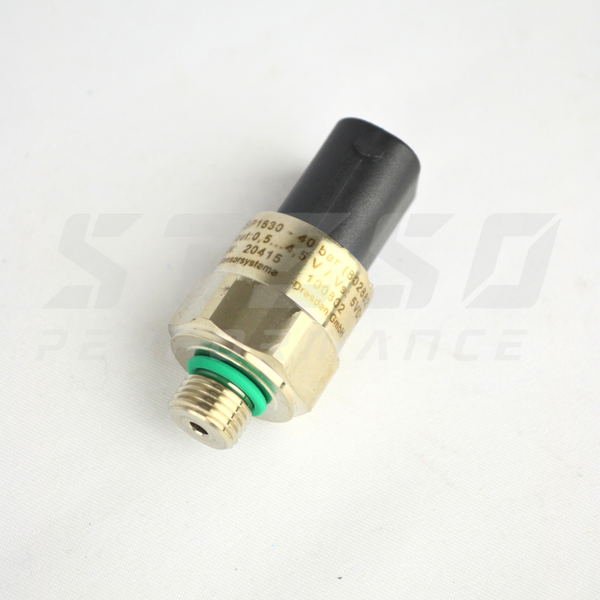

Getrag 7DCL750 Clutch Pressure Sensor – 40 Bar

The Getrag 7DCL750 40 Bar Clutch Pressure Sensor is a replacement component for the hydraulic clutch control system of the Getrag 7DCL750 7-speed dual-clutch transmission, used in select Ferrari, Ford GT, and Mercedes-AMG applications.

This sensor monitors hydraulic pressure within the clutch circuit and provides real-time feedback to the Transmission Control Module (TCM), helping ensure accurate clutch engagement, smooth gear changes, and proper transmission operation.

The Getrag 7DCL750 transmission is equipped with two clutch pressure sensors, each monitoring a separate clutch circuit. A malfunctioning sensor may cause transmission warning messages, shifting irregularities, loss of gear engagement, or transmission protection mode.

Key Features

• 40 Bar clutch hydraulic pressure sensor

• Designed for Getrag 7DCL750 7-speed dual-clutch transmissions

• Monitors hydraulic pressure in the clutch control system

• Provides pressure feedback to the Transmission Control Module (TCM)

• Suitable for compatible clutch pressure sensor positions

• Replacement component for transmission repair and maintenance

• Recommended to replace both sensors simultaneously when one fails

Vehicle Compatibility

Compatible with select vehicles equipped with the Getrag 7DCL750 transmission, including:

• Ferrari, Ford GT, Mercedes-AMG applications

OEM Reference Part Numbers:

• 70004021

• 70003860

Please verify transmission compatibility and OEM part number before ordering.

Common Symptoms of a Faulty Clutch Pressure Sensor

• Transmission warning messages

• Irregular, harsh, or delayed gear shifts

• Loss of odd or even gears

• Difficulty engaging gears or reverse

• Clutch hydraulic pressure-related faults

• Transmission entering limp mode

Possible Related Diagnostic Trouble Codes (DTCs):

P0841, P0842, P0843, P0846, P0847, P0848, P1902, P1903, P1904, P1905, P1906, P1907.

These fault codes do not necessarily indicate a defective pressure sensor. Additional diagnosis may be required to identify the underlying issue.

Important Installation Information

The Getrag 7DCL750 transmission uses two 40 Bar clutch pressure sensors, one for each clutch circuit.

Sold individually. Price is per sensor.

While replacing both sensors is not mandatory when only one has failed, replacing both sensors at the same time is recommended as a preventive maintenance measure to help reduce the likelihood of future sensor-related transmission issues.

For customers choosing to replace both sensors, please order a quantity of two.

Proper diagnosis is recommended before replacement, as hydraulic pressure faults may also be caused by internal hydraulic leaks, damaged seals, or valve body issues.
